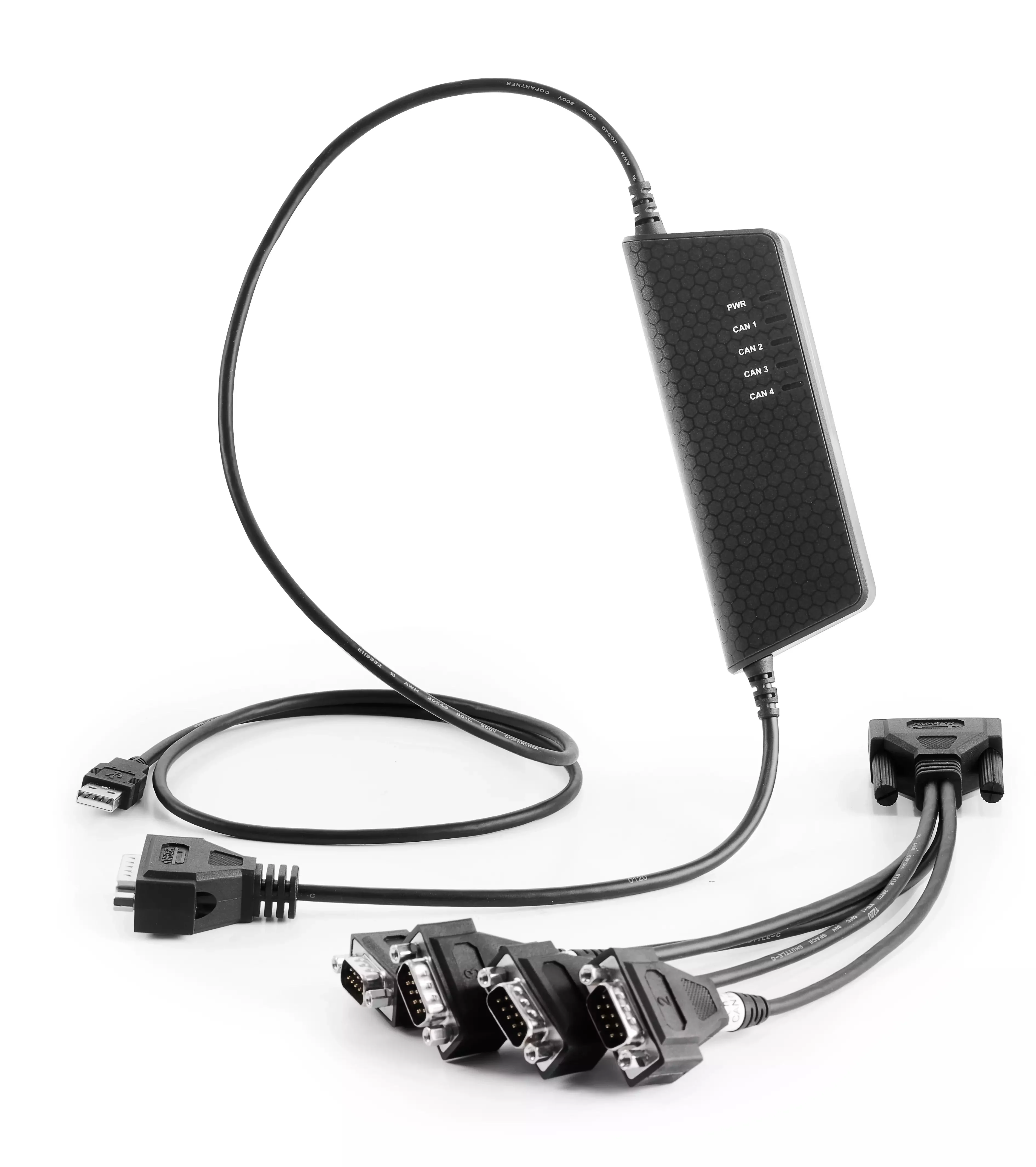

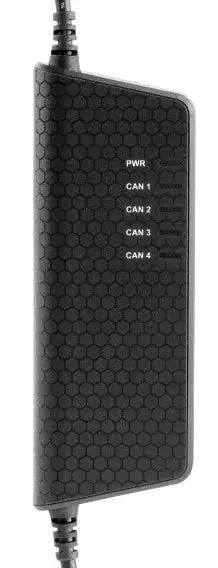

The Kvaser USBcan Pro 4xHS is an advanced, portable multi-channel CAN/CAN FD to USB real time interface that handles transmission and reception of standard and extended CAN messages on the CAN bus with a high time stamp precision. Features include t programming and MagiSync™, which makes it possible to synchronise time stamps across multiple Kvaser MagiSync™-enabled devices without requiring extra wires.

The Kvaser USBcan Pro 4xHS USB to quad channel CAN interface is the Pro version of the Kvaser USBcan Light 4xHS (00831-1), a compact, reliable and cost-effective means of connecting four high speed CAN buses to a PC or mobile computer.

Major Features

Multi-channel USB CAN interface with Kvaser t programmability.
20 000 msg/s per channel, each timestamped with a resolution of 1 μs.
Kvaser MagiSync™ – automatic time synchronization.
Supports CAN FD, up to 8 Mbit/s (with correct physical layer implementation).
Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
Supports silent mode for analysis tools – listen to the bus without interfering.
High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s.
Industrial grade temperature range, −40 oC to +85 oC.
Galvanic isolation.
Fully compatible with J1939, CANopen, NMEA 2000® and DeviceNet.
Simultaneous operation of multiple devices.
Power is taken from the USB bus.
Includes a 4-channel breakout cable.

Specifications

Warranty

2-Year Warranty. See our General Conditions and Policies for details. Register your product at kvaser.com/getting-started for an additional 1-year Warranty Extension.

Support

Free Technical Support on all products available by contacting support@kvaser.com.

Software

Documentation, software and drivers can be downloaded for free at kvaser.com/downloads.
Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, and Visual Basic.
All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types!
J2534 Application Programming Interface available.
RP1210A Application Programming Interface available.
On-line documentation in Windows HTML-Help and Adobe Acrobat format.

Bitrate

40-1000 kbps

Categories

Interfaces, Hardware, CAN

Certificates

CE, RoHS

Channels

Connectors

26-pin HD D-SUB

Current Consumption

max 500 mA

Error Counters Reading

Yes

Error Frame Generation

Yes

Galvanic Isolation

Yes

Height

20 mm

Interfaces

USB

Length

170 mm

Material

PA66

Messages Per Second Receive

20000 mps

Messages Per Second Sending

20000 mps

Linux, Win 7, Win 10, Win 8

Silent mode

Yes

Sound

Temp range

-40 °C to +85 °C

Timestamp Resolution (µs)

1 µs

Kvaser USBcan

Kvaser USBcan Light 4xHS, Quad USB to CAN Bus Interface

Kvaser USBcan Pro 2xHS v2, Dual USB to CAN Bus Interface

Kvaser USBcan R v2

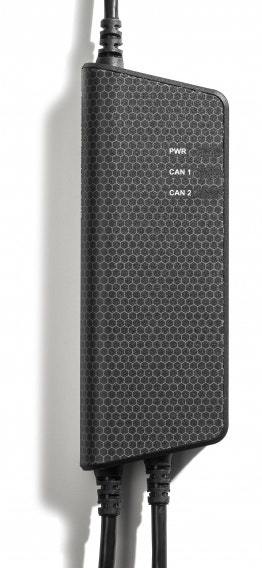

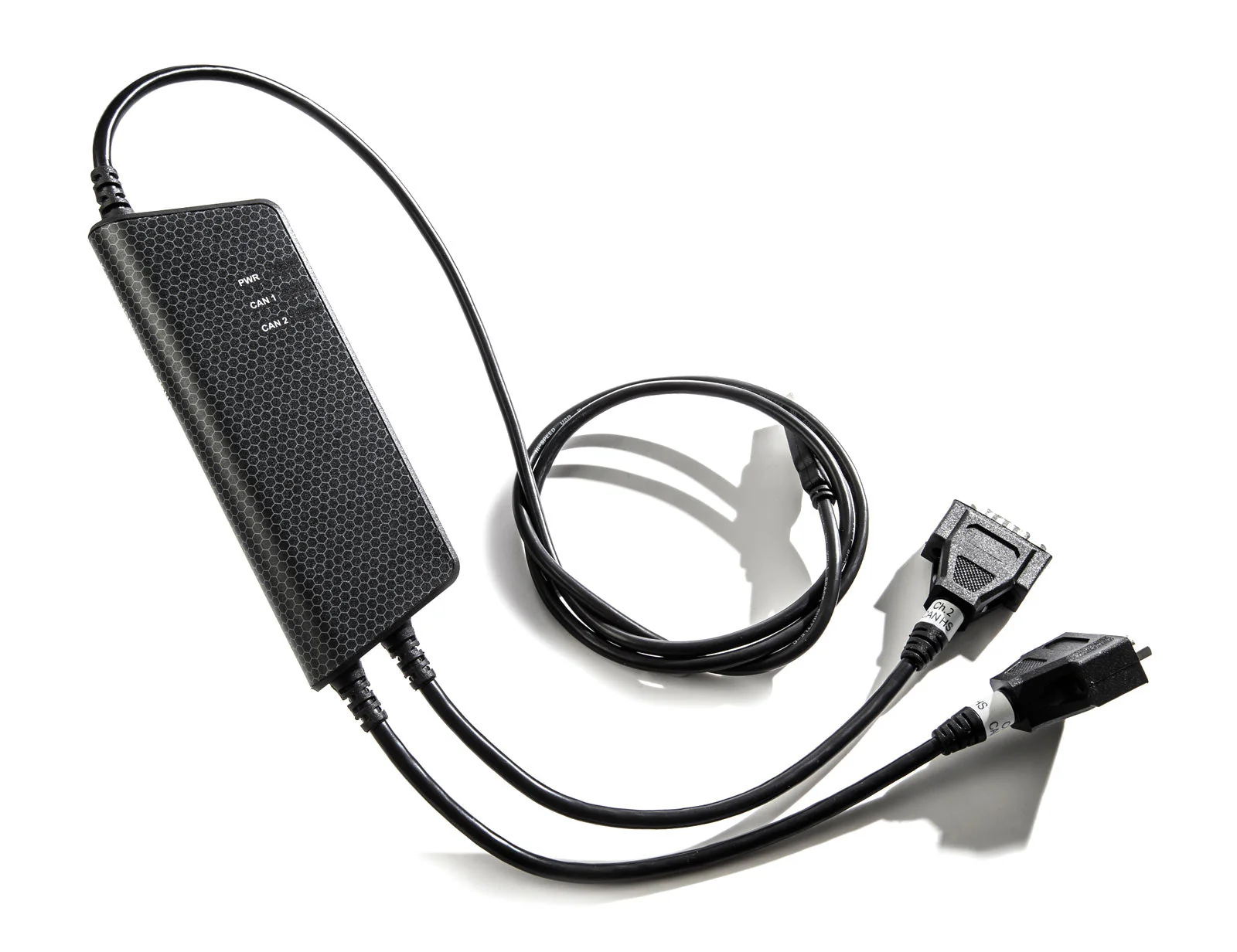

Kvaser USBcan Light 2xHS, Dual USB to CAN Bus Interface
