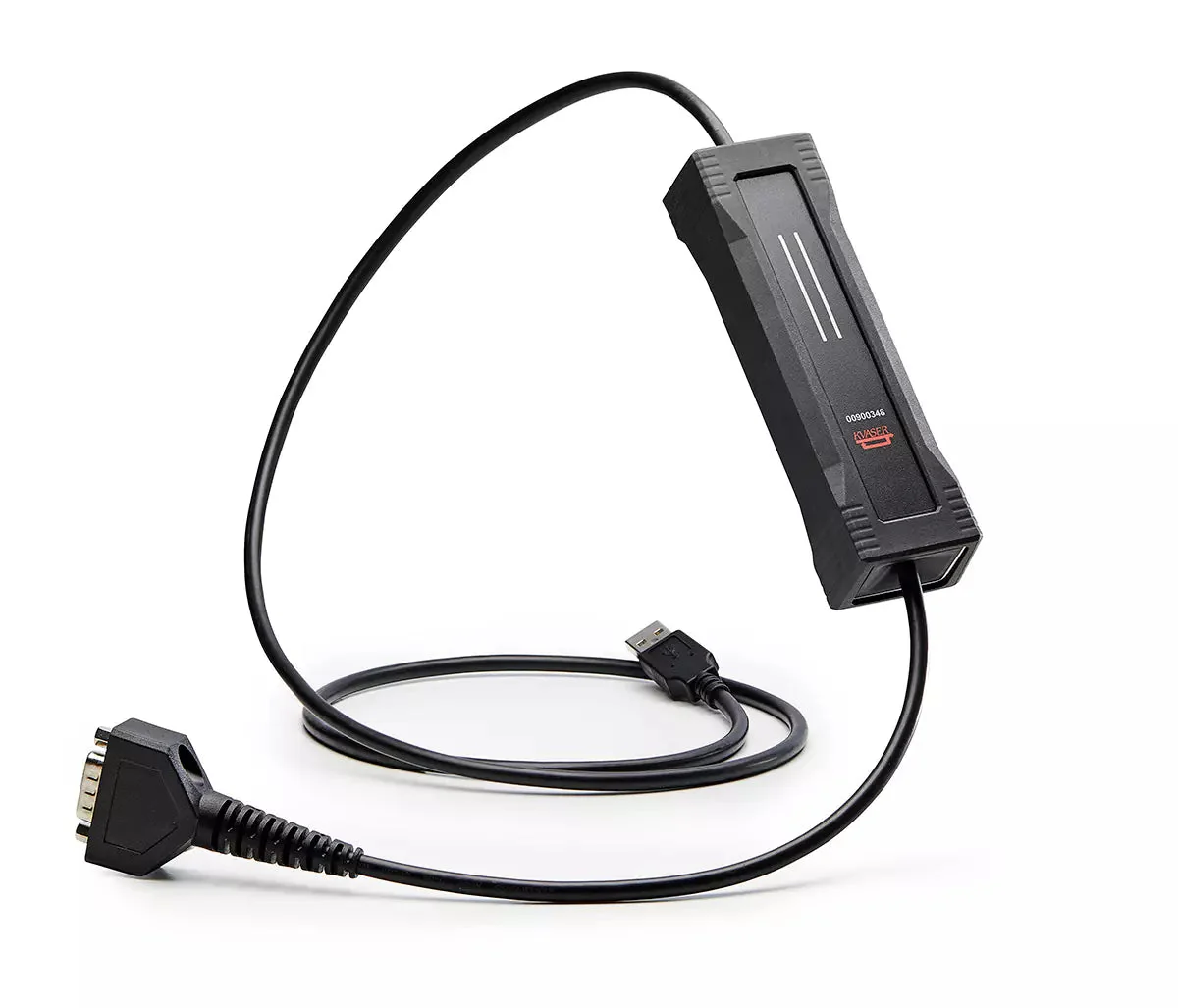

The Kvaser U100P is the Precision version of Kvaser’s U100 range of CAN to USB interfaces. The Kvaser U100P delivers advanced features for engineers working in system development and difficult troubleshooting situations. Get more precise timestamping, synced time measurements across multiple devices, and listen to the CANbus in silent mode.

Robust, galvanically-reinforced (Tested according to EN 60335-1:2012 paragraph 13 with 5000 VAC rms applied for 60 seconds.) and signal and power isolated, the Kvaser U100 range offers enhanced electrical protection, a vibration, shock and drop-proof housing and high-quality cabling that establishes a new reference in CAN interface design. This model builds on the Kvaser U100 (01173-1).

Major Features

Supports CAN FD, up to 8 Mbit/s (with correct physical layer implementation).
Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
Supports silent mode for analysis tools – listen to the bus without interfering.
Reinforced Galvanic Isolation. (Tested according EN 60335-1:2012 paragraph 13, 5000VAC rms applied for 60 seconds)
20 000 msg/s, timestamped with a resolution of 1 μs.
Kvaser MagiSync™ – automatic time synchronization.
Industrial grade temperature range, −40 oC to +85 oC.
Powered through the USB connector.
Supports bit rates from 10 Kbit/sec up to 1 Mbit/sec.
Lightweight, glass fibre reinforced polyamide housing, overmolded with TPE.
IP67 rated.
DB-9 connector (other connectors available).
Intuitive LED UI.
Support for SocketCAN.
Compatible with J1939, CANopen, NMEA 2000® and DeviceNet.
Fully compatible with applications written for other Kvaser CAN hardware
with Kvaser CANlib.

Specifications

Software

Documentation, software and drivers can be downloaded for free at www.kvaser.com/downloads.
Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, and Visual Basic.
All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types!
J2534 Application Programming Interface available.
RP1210A Application Programming Interface available.
On-line documentation in Windows HTML-Help and Adobe Acrobat format.

Warranty

2-Year Warranty. See our General Conditions and Policies for details.

Support

Free Technical Support on all products available by contacting support@kvaser.com.

Bitrate

10-1000 kbps

CAN FD Bitrate

Up to 8 Mbit/s

Categories

CABLES, Interfaces, Hardware, CAN

Certificates

CE, RoHS

Channels

Connectors

DSUB 9

Current Consumption

Typical 250 mA

Error Counters Reading

Yes

Error Frame Generation

Yes

Galvanic Isolation

Yes

Height

26 mm

Interfaces

USB

Length

128 mm

Material

2K, TPE surface on top of glass fibre reinforced polyamide

Messages Per Second Receive

20000 mps

Messages Per Second Sending

20000 mps

Linux, Win 7, Win 10, Win 8

Silent mode

Yes

Sound

Temp range

-40 °C to +85 °C

Timestamp Resolution (µs)

1 µs

Weight

170 g

Kvaser U100

Kvaser U100P

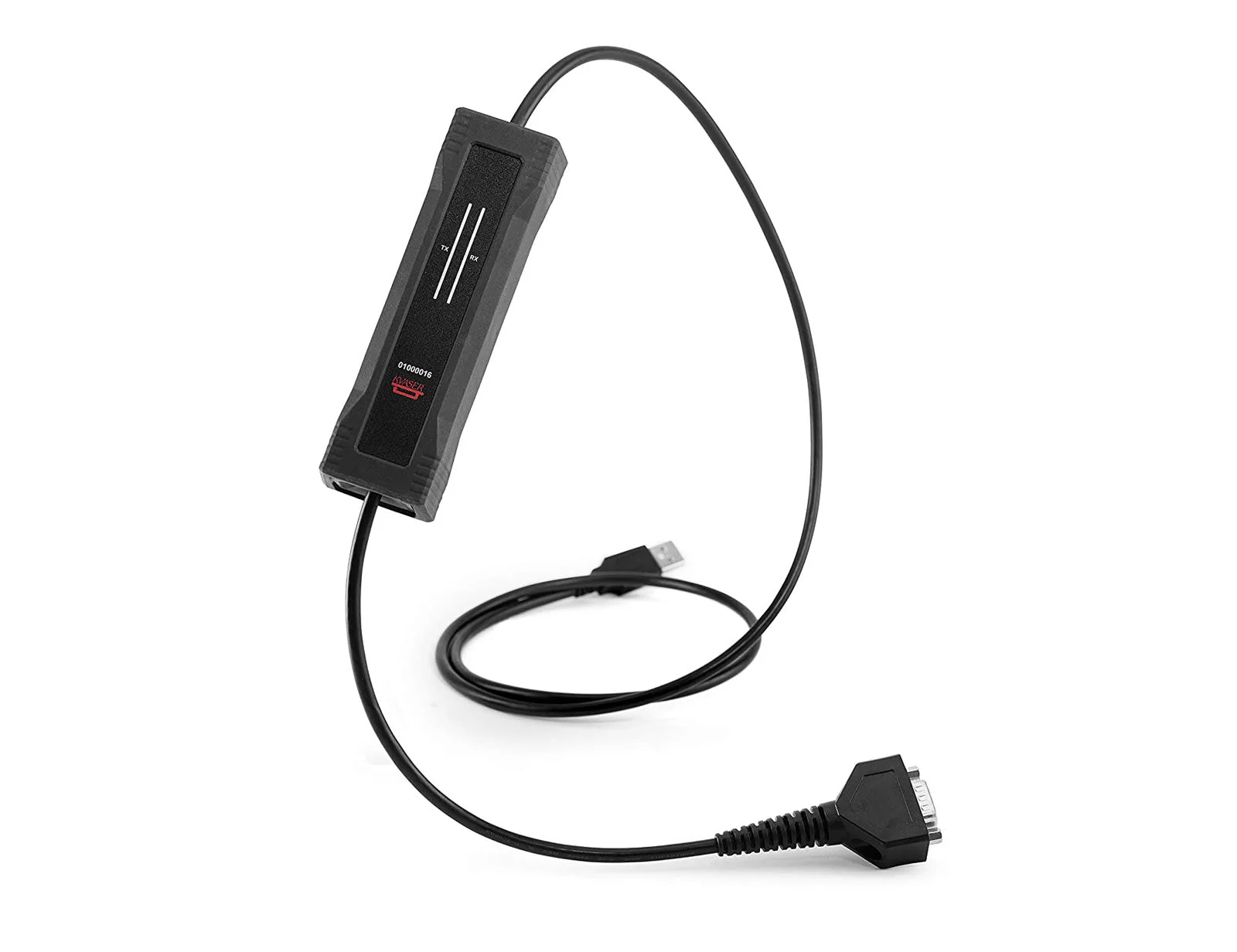

Kvaser U100 Single-Channel CAN/CAN FD to USB interface

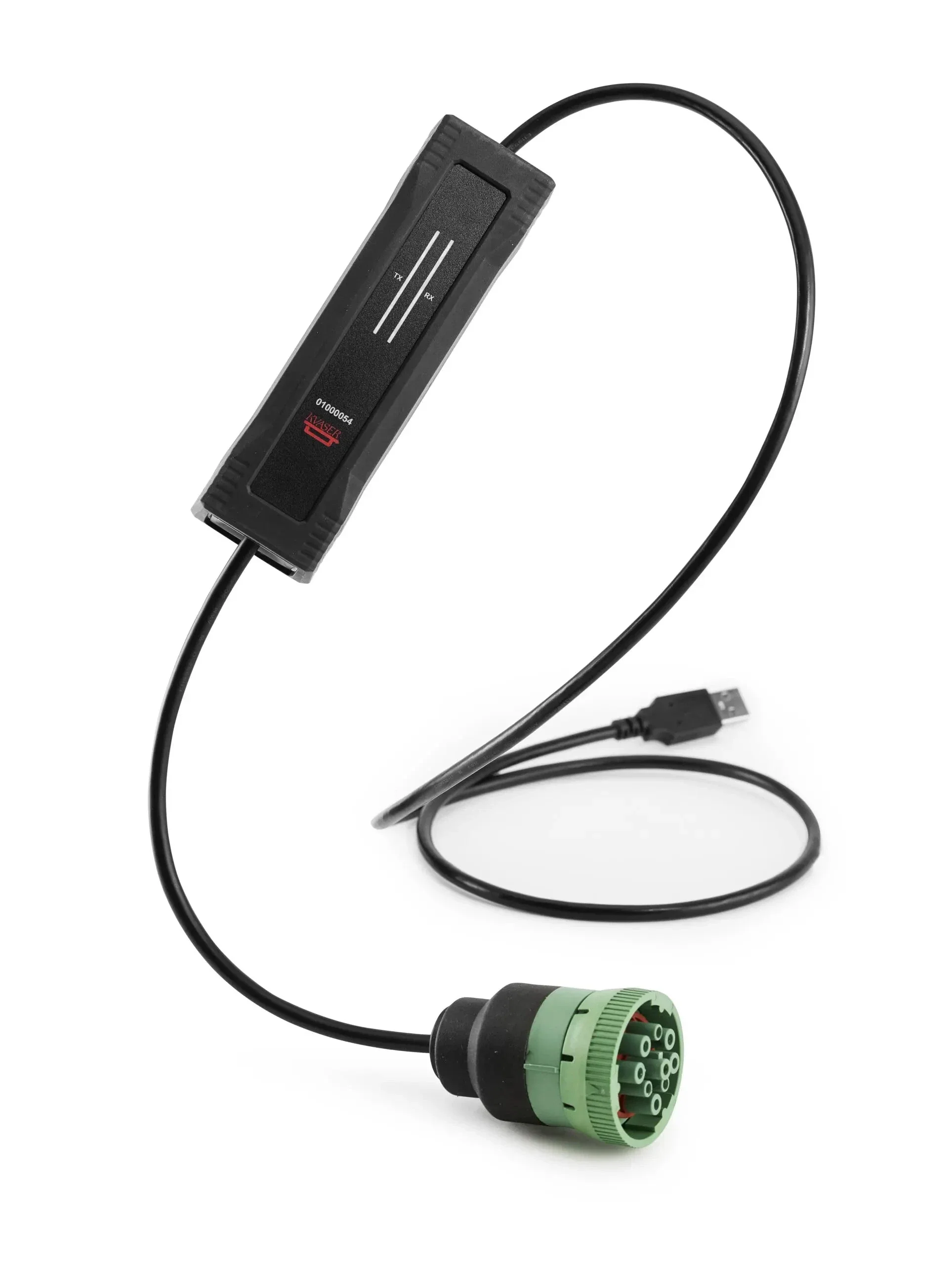

Kvaser U100-X1 CAN/CAN-FD to USB interface/9-pin J1939-13 Type II CAN Connector

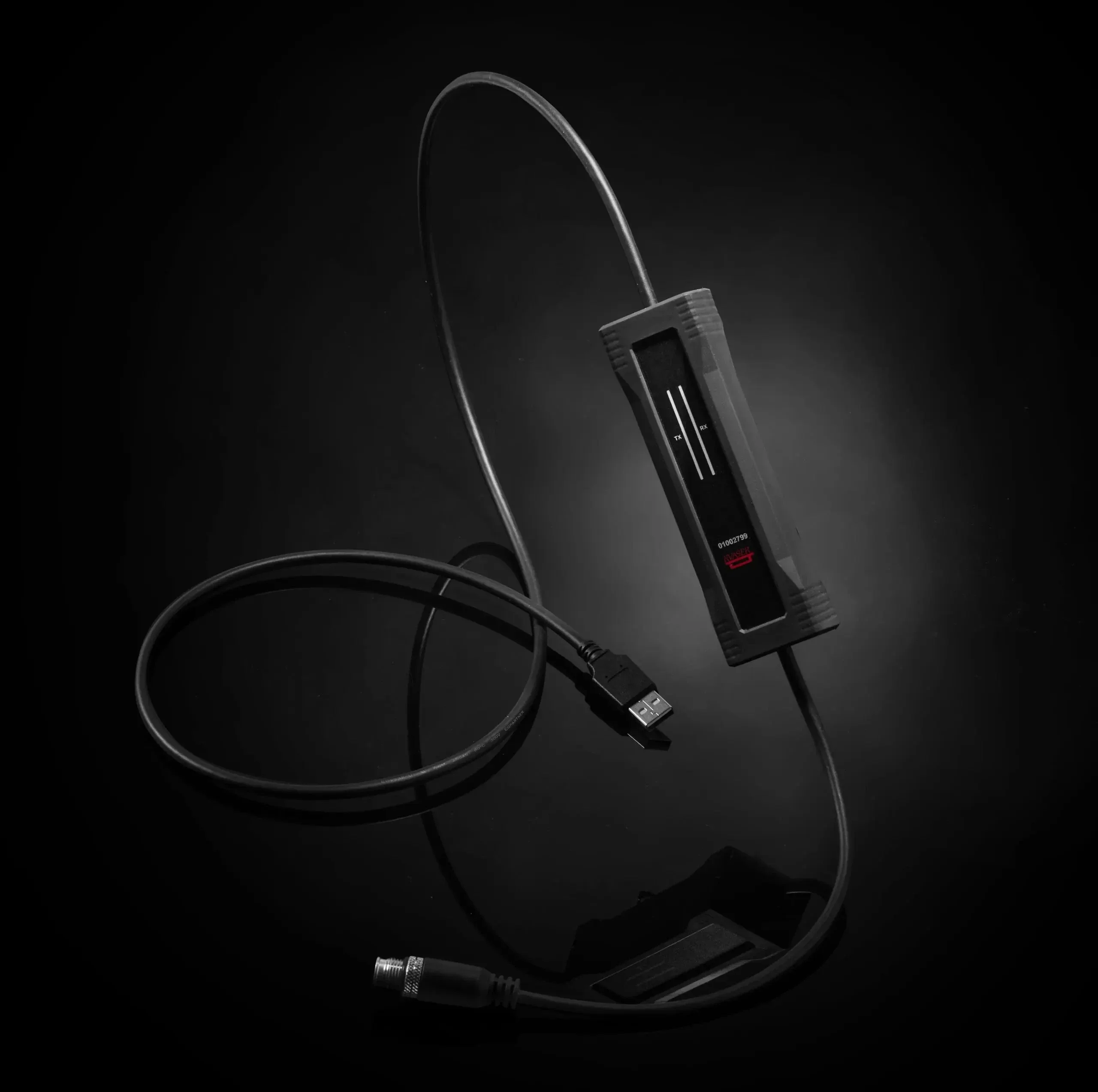

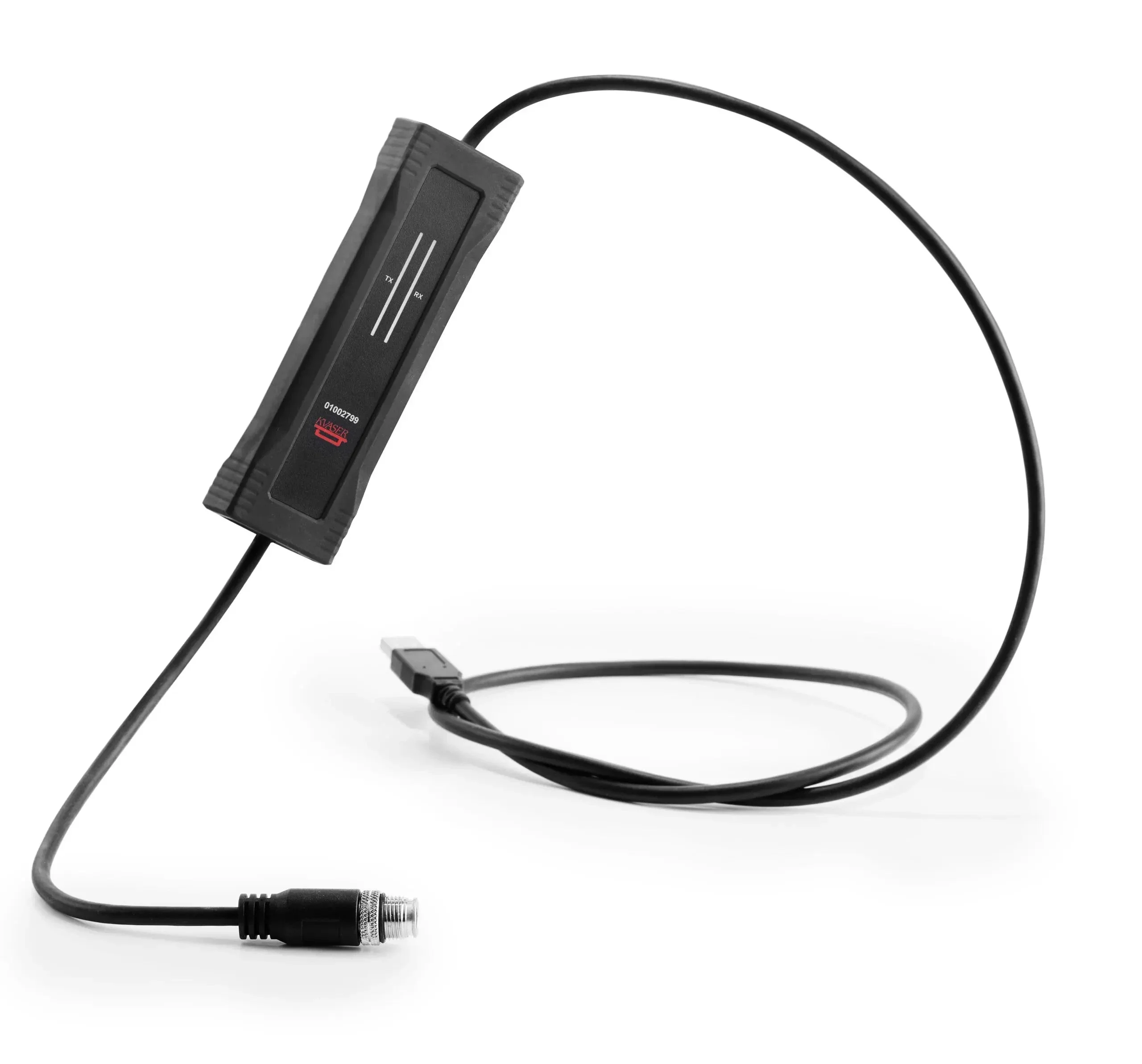

Kvaser U100-X2 CAN/CAN FD M12 to USB interface

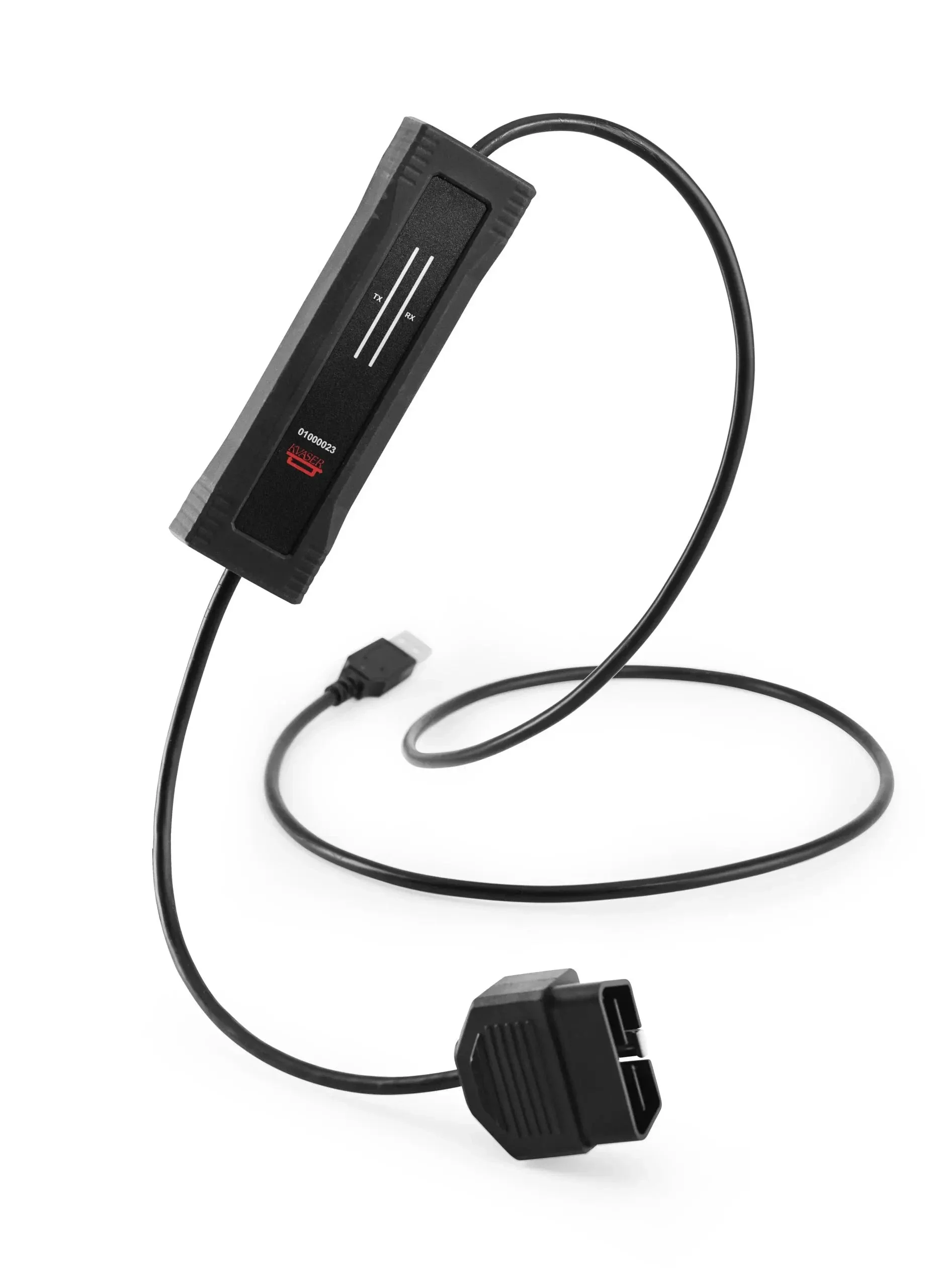

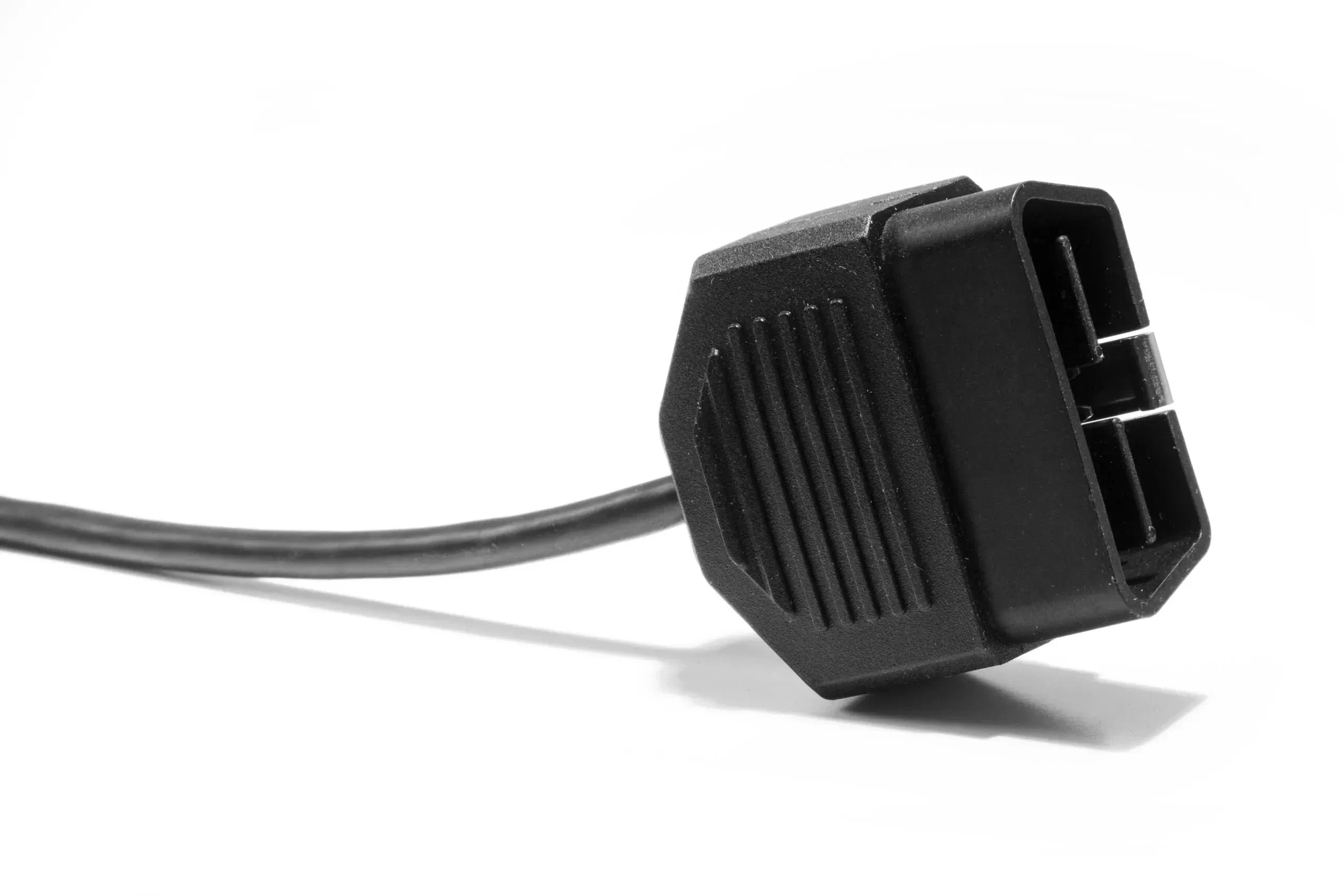

Kvaser U100-X3 CAN/CAN FD OBD-II to USB interface
